1. Product Description

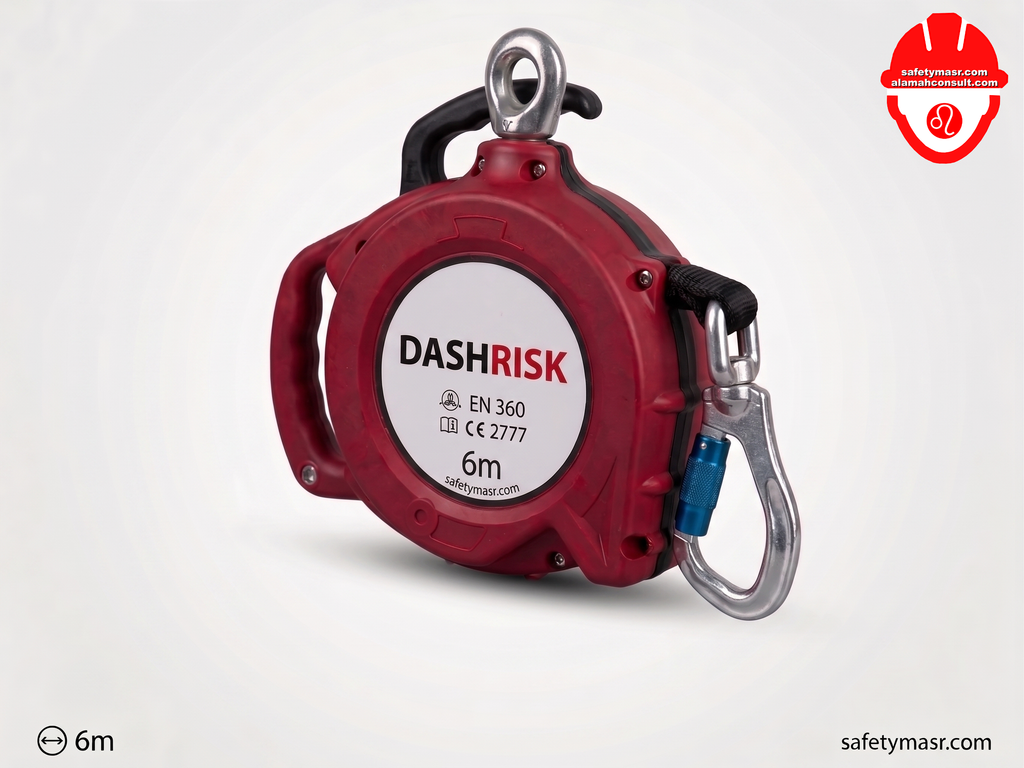

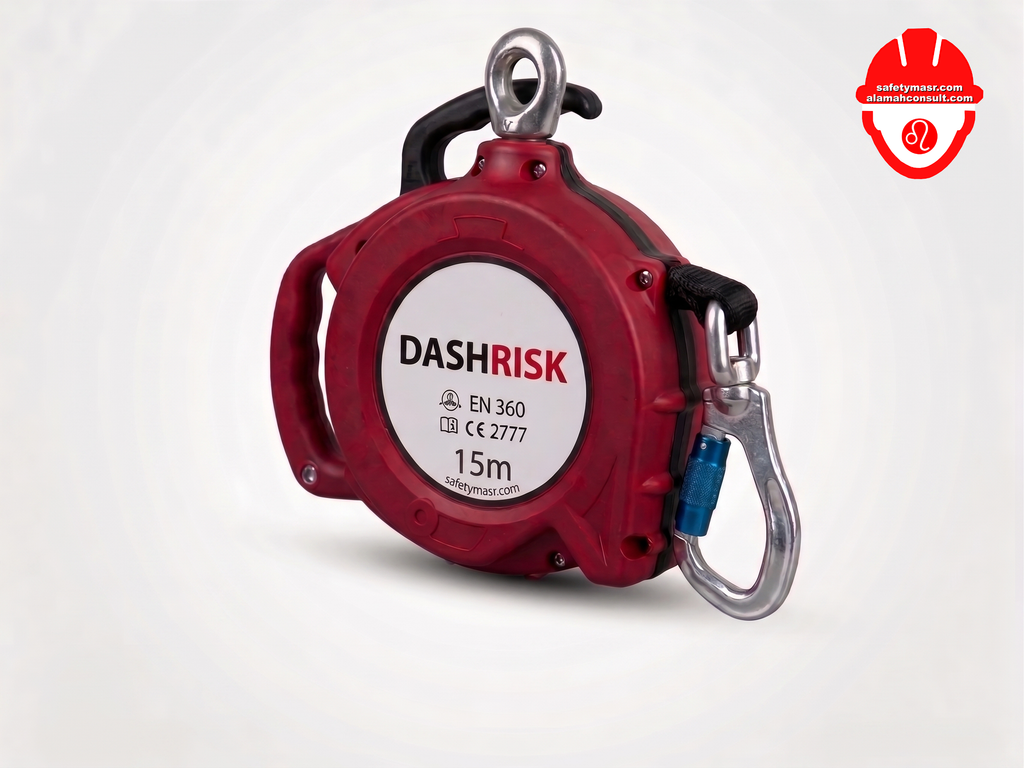

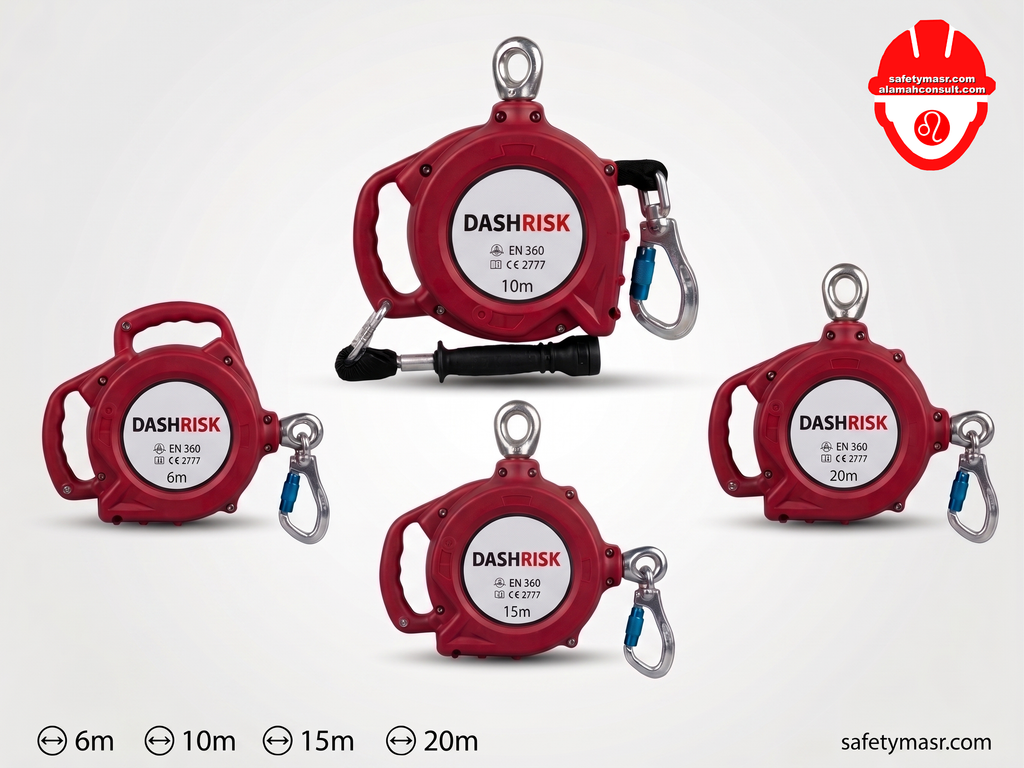

The retractable lifeline N-9450LECE is a fall arrest block designed for situations that require fall protection in order to give personnel unhindered movement.
2. Main Features
| Feature |
Description |
| Fall Arrest Attachment Point |
Rotating ring on top of the housing |
| Cable Material |
Galvanized steel cable |
| Hook Material |
N-2857, Aluminum, SAE7075 |
| Weight |
N-9450LECE-20/DZ : 4.0 kg
N-9450LECE-33/DZ : 4.7 kg
N-9450LECE-50/DZ : 7.1 kg
N-9450LECE-66/DZ : 9.4 kg |
| Color |
Red Housing |
| User Capacity |
140 kg (including tools and clothing)
|
3. Compliance and Testing
- Conforms to EN 360:2023 – Personal fall equipment – Retractable type fall arresters.
- Max arrest distance: 1.4M
- Max arrest force: 6KN
- Inspection: 100% visual inspection, and 1 piece out of every 100 will undergo a drop test.
4. Applications
- Fall protection system (with connector and anchor conforming to EN)
- Construction, tower climbing, maintenance, and general work-at-height
5. Instructions for Use
- Ensure working area is free from hazards and obstructions that could interfere with the working of the device or cause harm to the user.Adjust the five adjustment points to ensure a snug fit before use.
- Inspect all equipment before each use as per the manufacturer’s instructions.
- All equipment should be inspected on a regular basis by a competent qualified person.
- A competent person must ensure the systems compatibility will not allow accidental disengagement.
6. Packaging & Storage
- Supplied in individual carton box with instruction manual
- Store in a dry, clean area away from UV light and chemicals
7. Service Life & Inspection
-
Expected service life: up to 3-5 years from manufacturing date (depending on conditions of use or storage space )
-
Inspection:
- Pre-use check by user before each use
- Formal inspection by competent person every time before use.
